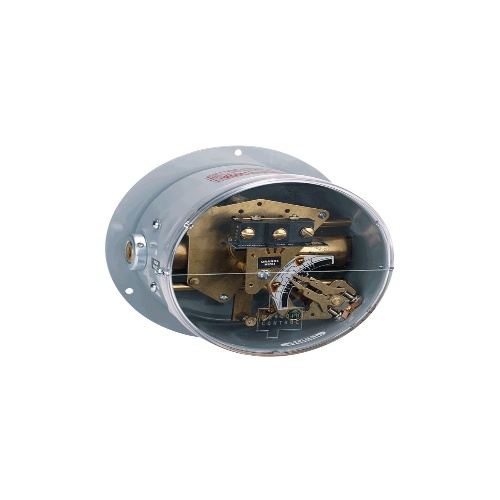

Dwyer DPS-233-3-61 Double Bellows Differential Pressure Switch

Dwyer DPS-233-3-61 is a double bellows differential pressure switch with a temperature range of -10 to 180°F (-23 to 82°C). It is suitable for general purpose, weatherproof, or explosion-proof enclosures and has screw terminal electrical connections. The switch can be mounted vertically and has wetted materials of brass or 316SS. The pressure limit is determined by the operating range, and the process connection is 1/8" NPT female for general purpose and weatherproof enclosures, and 1/4" NPT male for explosion-proof enclosures. The electrical rating and switch type can be found on the ordering page. The set point can be adjusted using a thumbscrew, and the conduit connection varies depending on the enclosure type. Specifications Component Pressure Switch (Instrument-Sensor) Temperature Range -10 – 180°F/-23 – 82°C (Instrument-Sensor) Type Double Bellows Manufacturer Dwyer Instruments Features Bellows switch design provides sensitivity to pressure changes but resists vibration preventing out of range switching External access to set and rest controls makes for easy adjustments Visible set point indicators simplify changes Be the first to review “Dwyer DPS-233-3-61 Double Bellows Differential Pressure Switch” Cancel replyYour email address will not be published. Required fields are marked *Your rating of this product Rate… Perfect Good Average Not that bad Very poor Name * Email * Save my name, email, and website in this browser for the next time I comment. Reviews There are no reviews yet.
